PF3D – G-STRUT HEAVY DUTY DOUBLE STRUT CHANNEL

It is used for heavy duty fixings, support brackets, load-bearing frames, and supports for fire protection systems.

  •  The folded edges on the rail sides ensure high resistance to sliding for connection parts.
  • This kind of strut channel can be connected to different kinds of elements, providing a wide range of solutions.
  • Its loops make fixing easier.



NB: Product available on request. Shipping to be arranged according to destination.

Download the Technical Sheet

Material technical data

Material = Steel DX51D EN 10346 with sendzimir zinc plating
COD Type Description
160800PF3D MT6Heavy duty fixings and supports for fire protection systems
Aggiungi / Rimuovi
COD Type A B C D E F L P
160800PF3D MT641822,5211330506000
Aggiungi / Rimuovi

Data expressed in daN. 1 daN=1 kg

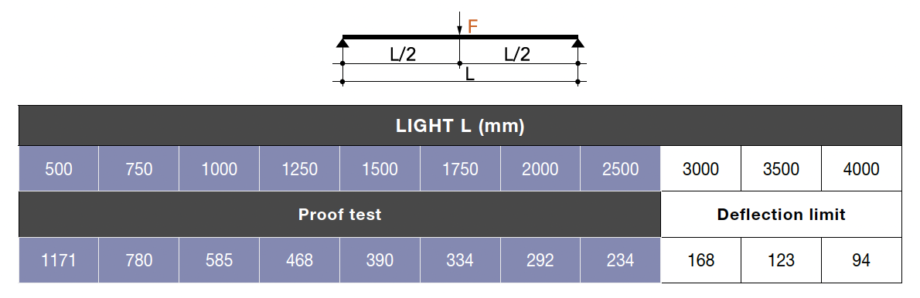

MAXIMUM SAFETY LOADS ACCORDING TO THE OVERALL LIGHT FOR MAX DEFLECTION <1/200 – F (daN)

Venduti in 6 mt long bars

COD Type
160800PF3D MT6
Aggiungi / Rimuovi
