SAETTA – SUPPORT BRACKET FOR AIR-CONDITIONING UNITS

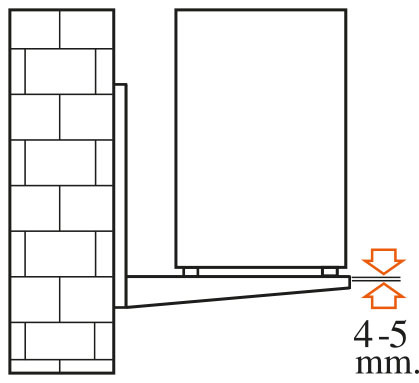

It is used to fasten air-conditioning units to the wall.

  •  It guarantees a solid and reliable installation to support air-conditioning units.
  • The interlocking system ensures a very fast installation.
  • Thanks to its strong metal sheet, it is able to support high payloads.
  • Supplied with fixing screws and Giolli plugs.
  • Available with different degrees of the finishing.
Download the Technical Sheet

Material technical data

  • SAETTA = Steel DX 51 D EN 10142 with sendzimir zinc-plating and varnish finishing with polyester powder, which makes the bracket suitable for outdoor use - RAL 1013
  • SCREWS = Stainless steel AISI 304 – EN 10088
  • PLUG = PP Polypropylene
COD Type Description
161287SAETTA INOX 46Stainless steel AISI 304
Aggiungi / Rimuovi
161291SAETTA 46Galvanised and painted - RAL 9010
Aggiungi / Rimuovi

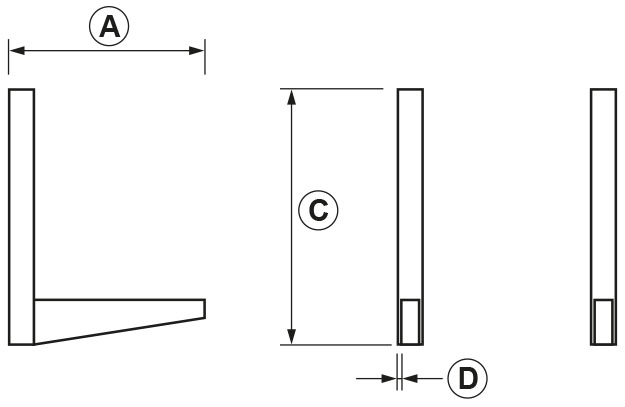

COD Type A C D
161287SAETTA INOX 464605162.5
Aggiungi / Rimuovi
161291SAETTA 464605162.5
Aggiungi / Rimuovi

Please notice that loads data refer to the installation of a pair of brackets. Recommended load is the average resistance loads with a safety coefficient. 1daN=1kg.

COD Type F
161287SAETTA INOX 46150
Aggiungi / Rimuovi
161291SAETTA 46150
Aggiungi / Rimuovi

Venduti in Cardboard box

COD Type Pieces pack Packs for packing
161287SAETTA INOX 4621
Aggiungi / Rimuovi
161291SAETTA 4621
Aggiungi / Rimuovi
