TLA – Heavy duty through anchor

Fixing on compression resistant materials, such as concrete and natural stone.

  • Through anchor with external thread for medium-heavy duty loads.
  • Quick installation for through fixings.
  • Controlled expansion via driving torque.
  • Expansion clip with anti-rotation fins.
  • Through fixing: set, drill and anchor without moving the item.
  • Remember to leave the threaded body of the nut sticking out by at least 2 or 3 mm.
  • Available in blister packaging for self-service distribution.

Material technical data

  • MATERIAL = Steel 4.8 EN ISO 898-1 with electro zinc plating 7-8 μm

COD Type Basic material Minimum anchorage depth Minimum drilling depth Minimum distance from the edge mm Maximum thickness that can be fixed
130102TLA 6x55Calcestruzzo32425010
130112TLA 8x75Calcestruzzo43606510
130113TLA 8x90Calcestruzzo48656520
130122TLA 10x80Calcestruzzo5070705
130123TLA 10x100Calcestruzzo55757020
130132TLA 12x110Calcestruzzo65778518
130133TLA 12x160Calcestruzzo65778568
130142TLA 16x180Calcestruzzo8411511053
330112TLA 8x75s*Calcestruzzo43606510
330122TLA 10x80s*Calcestruzzo5070705
330123TLA 10x100s*Calcestruzzo55757020

* *confezionato in blister trasparenti

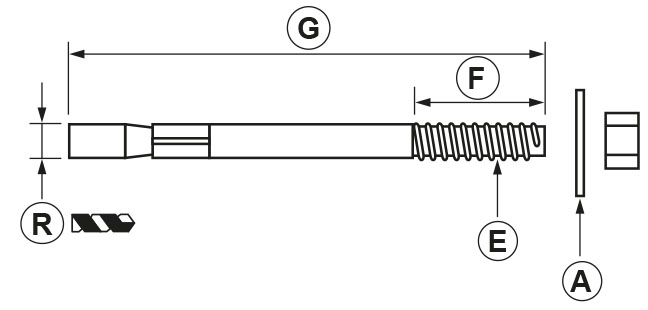

COD Type A E F G R
130122TLA 10x8020x10,5x2M10328010
130123TLA 10x10020x10,5x2M105910010
130132TLA 12x11023,5x12,5x3M124111012
130133TLA 12x16023,5x12,5x2,5M1212016012
130142TLA 16x18030x17x3M1613217516
330112TLA 8x75s*16x8,5x1,5M835758
330122TLA 10x80s*20x10,5x2M10328010
330123TLA 10x100s*20x10,5x2M105910010
130102TLA 6x5512,5x6,5x1,5M625556
130112TLA 8x7516x8,5x1,5M835758
130113TLA 8x9016x8,5x1,5M854908

* *confezionato in blister trasparenti

Recommended load is the average resistance loads with a safety coefficient. 1 daN=1 kg. // Tested on C20/25 concrete.

Venduti in Scatola

COD Type Pieces pack Packing pieces Unit Price € L P H
130102TLA 6x55-100
130112TLA 8x75-100
130113TLA 8x90-100
130122TLA 10x80-50
130123TLA 10x100-50
130132TLA 12x110-25
130133TLA 12x160-25
130142TLA 16x180-25
330112TLA 8x75s*5100,340,090,17
330122TLA 10x80s*4100,340,090,17
330123TLA 10x100s*3100,340,090,17
