TCO – Steel anchor with inner thread for bolts and threaded rods

Fixing for medium-heavy duty loads on concrete.

  • Particularly suitable for concrete walls wih a narrow thickness.
  • The pre-assembled percussion expansion taper allows to use the item no matter which screws has been chosen. It has no rim, so that it can be positioned at the required depth.
  • The anchor is internally threaded and contains an expansion taper to be hit with a specific tool to guarantee its right expansion.
  • The fastened object can be removed without affecting the anchor expansion.

Material technical data

  • MATERIAL = Steel 4.8 EN ISO 898-1 with electro zinc plating 7-8 μm

COD Type Basic material Minimum drilling depth Minimum screwing depth
100200TCO 6Calcestruzzo3013,5
100210TCO 8Calcestruzzo3013,5
100220TCO 10Calcestruzzo4016
100230TCO 12Calcestruzzo5021
100240TCO 16Calcestruzzo6526

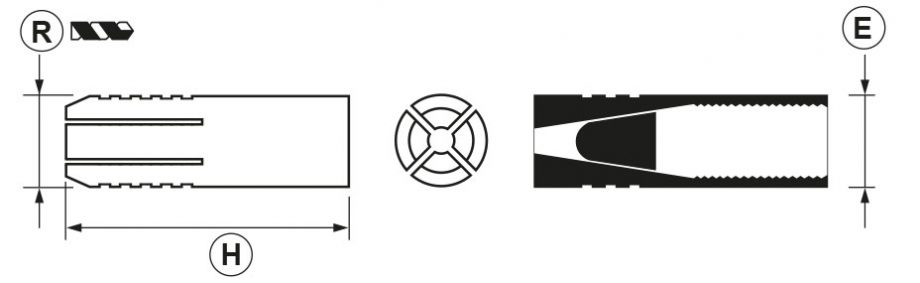

COD Type E H R
100210TCO 8M83010
100220TCO 10M104012
100230TCO 12M125015
100240TCO 16M166520
100200TCO 6M6308

A= tensile. // Recommended load is the average resistance loads with a safety coefficient. 1 daN=1 kg. // Tested on concrete R250.

COD Type A
100200TCO 6330
100210TCO 8330
100220TCO 10510
100230TCO 12710
100240TCO 161050

Venduti in Scatola

COD Type Pieces pack Packing pieces Unit Price €
100200TCO 6-100
100210TCO 8-100
100220TCO 10-50
100230TCO 12-25
100240TCO 16-10
