TBF – Medium duty steel anchor

Through fixing for medium-heavy duty loads on solid materials (wood, concrete, solid bricks, natural stone).

  • High and homogeneous expansion thanks to the cuts on the expanding body.
  • Knurled expander taper in order to prevent idle rotation during anchoring and to ensure expansion across the sectors.

Material technical data

  • MATERIAL = Steel 4.8 EN ISO 898-1 with electro zinc plating 7-8 μm

COD Type Application Basic material Minimum drilling depth Maximum thickness that can be fixed
100310TBF 10x55PA - PA30 - PA2 - PA40 - PAP - PAP50Calcestruzzo508
100311TBF 10x80SAT - SAT1 - SA2 - PF - PF1 - PF5Calcestruzzo5035
100321TBF 12x105PAP - PF2 - PF3 - PF7 - PAP50 - SAT2Calcestruzzo6545

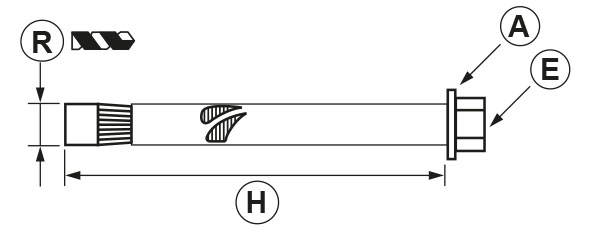

COD Type A E H R
100310TBF 10x5519x8,5x1,5M8x555510
100311TBF 10x8019x8,5x1,5M8x808010
100321TBF 12x10523,5x10,5x2M10x10510512

Recommended load is the average resistance loads with a safety coefficient. 1 daN=1 kg. // Tested on R250 concrete.

COD Type A
100310TBF 10x55210
100311TBF 10x80280
100321TBF 12x105440

Venduti in Scatola

COD Type Pieces pack Packing pieces Unit Price €
100310TBF 10x55-50
100311TBF 10x80-50
100321TBF 12x105-25
