SVELTA – support bracket for wall hung wc and bidet

Wall hung wc and bidet fastening on masonry.

  • Extremely fast and solid installation thanks to the patented system with bayonette fitting.
  • Fast adjustment of the center-to-center distance between 180 and 230mm allowed by the nuts, which are pre-assembled on the connection rods.
  • Complete with finishing caps for the best aesthetic result.
  • Every package is equipped with detailed assembly instructions.
  • It is designed to bear a load of 400 kg, according to the UNI EN 997 and UNI 8950/2 regulations for wall hung wc and bidet.

Material technical data

  • BRACKET = Carbon steel DX51 D Z200 EN 10142 zinc sendzimir
  • COMPONENTS = Carbon steel 4.8 EN ISO 898.1 with electro zinc plating 7-8 μm
  • PLUG = PP Prolypropylene
  • WASHERS= White Nylon PA6
  • CAPS = PE Polyethylene
COD Type Application Base Material Description
020535SVELTAWall hung wc and bidetMasonry
020536SVELTA SWall hung wc and bidetMasonry Single bracket

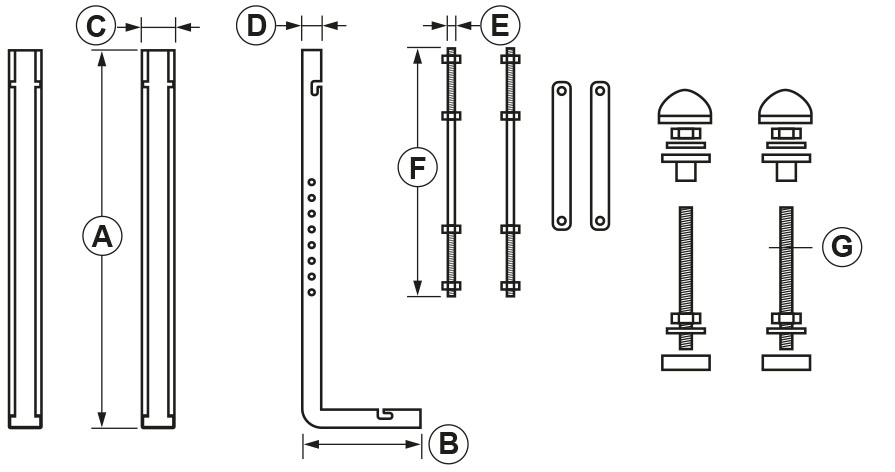

COD Type A B C D E F G
020536SVELTA S6001803920M8300M12x180
020535SVELTA6001803920M8300M12x180

0

COD Type A
020535SVELTA400
020536SVELTA S400

Venduti in Cardboard box

COD Type Pieces pack Packing pieces Packs for packing Unit Price €
020535SVELTA29648
020536SVELTA S1
