Clip support

Light duty pipe lines fastening

  • Handy: it can be bent by hand in order to hang or brace the pipe lines to the wall.
  • Strip made of galvanized steel and completed with screw and Giolli plug for wall fixing.

Material technical data

  • MATERIAL = Steel DD11 EN 10111 with electro zinc plating 7-8 μm

  • SCREW = Steel 4.8 EN ISO 898.1 with electro zinc plating 7-8 μm
  • PLUG = PP Polypropylene

COD Type For pipes Ø mm Width
075000STE 3/8"17 - 1815
075100STE 1/2"21 - 2215
075200STE 3/4"26 - 2715
075300STE 1"33 - 3420

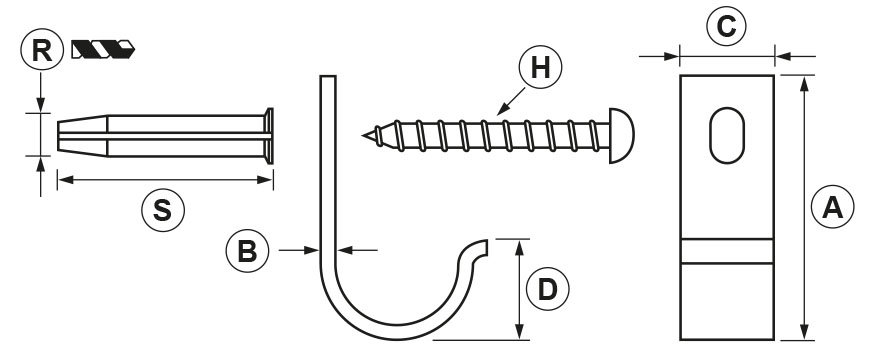

COD Type A B C D H R S
075000STE 3/8"42.51.51515.54,5x35630
075100STE 1/2"41.51.515194,5x35630
075200STE 3/4"48.51.51520.54,5x35630
075300STE 1"55220256 x 40840

COD Type
075000STE 3/8"
075100STE 1/2"
075200STE 3/4"
075300STE 1"

Venduti in Scatola

COD Type L P H Pieces pack Packing pieces Unit Price €
075000STE 3/8"0,20,180,12-200
075100STE 1/2"0,20,180,12-200
075200STE 3/4"0,20,180,12-200
075300STE 1"0,20,180,12-100
