AZZURRA – Universal preassembled bracket for wall hung bidet

Wall hung bidet fastening and installation on masonry. Suitable for any kind of joint, including drop elbows.

  • Exclusive patent: suitable to fasten any kind of joint, including drop elbows.
  • The plate – vertically adjustable – is set at the best height for most of the bathroom fixtures sold in the marketplace.
  • Compact: it only takes 33,5 mm of space and it can be installed in 8 cm thick walls, without breaking both walls.
  • Solid: complete with double cross plate and strategic supports to make it even more reliable.
  • Multiple ways in which it is possible to install elbows and joints.
  • Provided with insulated pipe clamp.
  • Epoxy coated to ensure a good resistance to high temperatures, chemical components and corrosion.

Material technical data

  • BRACKET= Carbon steel DD11 EN 10111 with light blue epoxy coating
  • COMPONENTS = Carbon steel 4.8 EN ISO 898.1 with electro zinc-plating 7-8 μm
  • WASHERS = White Nylon PA6
  • CAPS = PE Polyethylene
COD Type Application Base Material
020513AZZURRAWall hung bidetMasonry

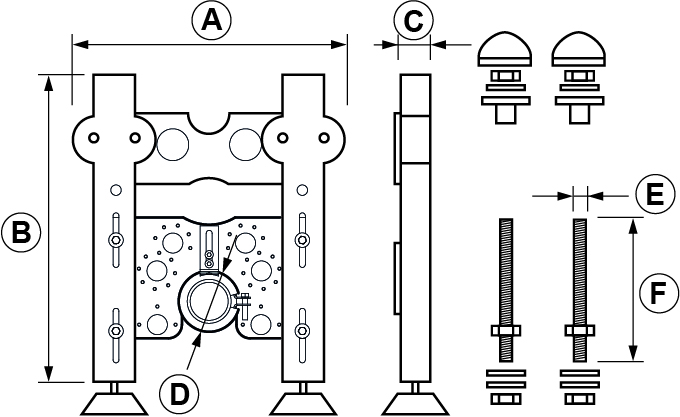

COD Type A B C D E F

COD Type A

Venduti in Cardboard box

COD Type L P H Pieces pack Packs for packing Unit Price €
