Cavity fixings

Fixing to ceiling or hollow walls.

  • Quick and safe installation thanks to the spring or the rocker arm .
  • They can be used on boards with different thickness while mantaining the maximum flexibility.

Material technical data

  • MATERIAL = Steel 4.8 EN ISO 898-1 with electro zinc plating 7-8 μm

COD Type Description Basic material
131100CV 4Barretta 4mm - foro Ø 12 mmSoffitto - pareti vuote
131110OC 4Occhiello 4mm - foro Ø 12 mmSoffitto - pareti vuote
131120OA 4Gancio 4mm - foro Ø 12 mmSoffitto - pareti vuote
131130DD 4Barretta 4mm//2 dadi - foro Ø 12 mmSoffitto - pareti vuote
131210OC 6Occhiello 6mm - foro Ø 16 mmSoffitto - pareti vuote
131220OA 6Gancio 6mm - foro Ø 16 mmSoffitto - pareti vuote
131230DD 6Barretta 6mm//2 dadi - foro Ø 16 mmSoffitto - pareti vuote
131235AS 8Solo ancorina - foro Ø 20 mmSoffitto - pareti vuote

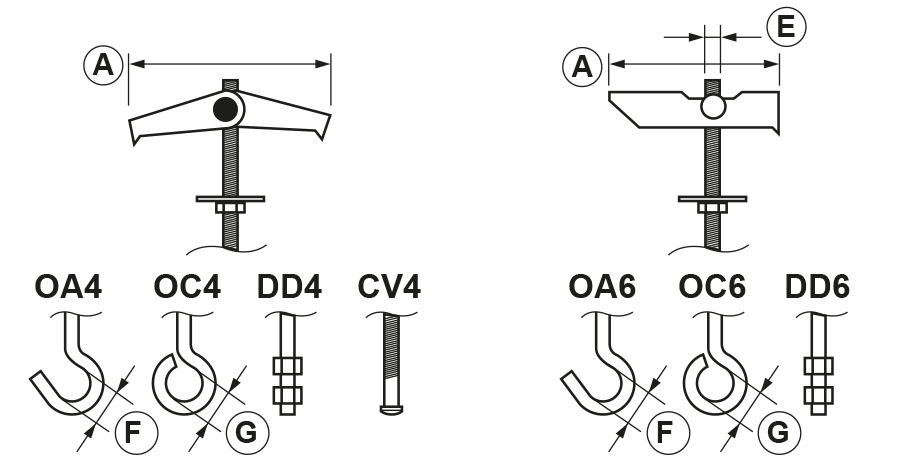

COD Type A E F G
131110OC 4450012
131120OA 445-12-
131130DD 445M4--
131210OC 667.5--14
131220OA 667.5-14-
131230DD 667.5M6--
131235AS 860M8--
131100CV 445---

Recommended load is the average resistance loads with a safety coefficient. 1 daN=1 kg.

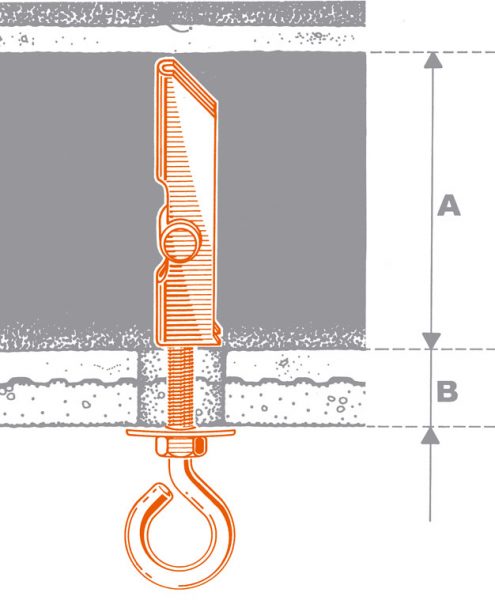

COD Type A B F
131100CV 42550100
131110OC 4253040
131120OA 4253040
131130DD 42560100
131210OC 67530300
131220OA 67530300
131230DD 67560300
131235AS 836-300

Venduti in Scatola

COD Type Pieces pack Packing pieces Unit Price €
131100CV 4-100
131110OC 4-100
131120OA 4-100
131130DD 4-100
131210OC 6-50
131220OA 6-50
131230DD 6-50
131235AS 8-100
